Description

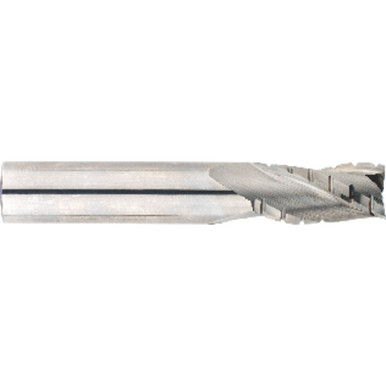

Country of OriginUSACutting Diameter (DC) 1/4″Length Group RegularConnection Diameter Machine Side (DCONMS) 1/4″Coolant Supply Property (CSP) ExternalDepth of Cut Maximum (APMX) 3/4″Style Roughing/FinishingOverall Length (OAL) u200e2-1/2″Decimal Equivalent 0.250″Cutting Edge Material CarbideMeasurement Type InchCoating UncoatedSeries/List 5928Flute Count (NOF) 3Package Height .37500Flute Helix Angle (FHA) 30 DegreesCorner Radius (RE) / Chamfer Width (CHW) u200e0.005″ – 0.010″Shank Type PlainCutting Direction (HAND) RightEnd Shape Corner RadiusSingle / Double End Single EndUsable Length (LU) 3/4″Center Cutting YesCorner Radius (RE) u200e0.005″ – 0.010″
