Description

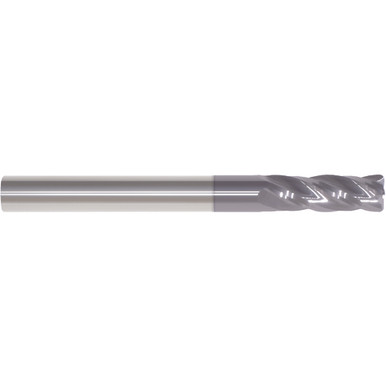

Country of OriginUSACutting Diameter (DC) 1/8″Application FinishingConnection Diameter Machine Side (DCONMS) 1/8″Corner Radius (RE) 0.015″Depth of Cut Maximum (APMX) 1/2″Tool Type Single EndOverall Length (OAL) u200e1-1/2″Length Group RegularCutting Edge Material CarbideCoolant Supply Property (CSP) ExternalCoating AlTiNStyle FinishingFlute Count (NOF) 4Decimal Equivalent 0.125″Shank Type PlainMeasurement Type InchEnd Shape Corner RadiusSeries/List 5968TUsable Length (LU) 1/2″Corner Radius (RE) / Chamfer Width (CHW) 0.015″
