Description

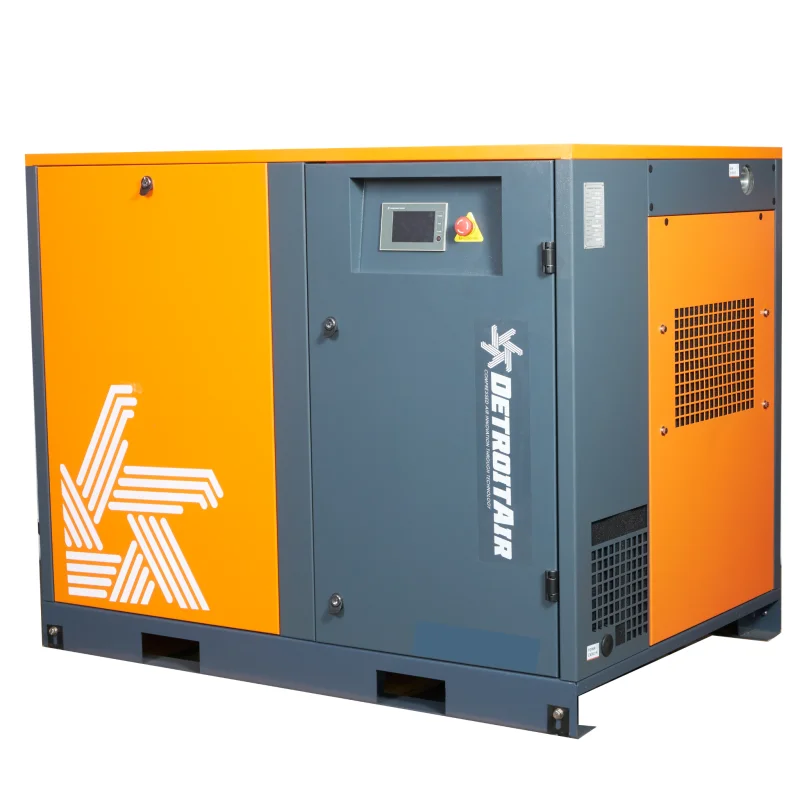

| MODEL | G2DB-40VSD | |
| MOTOR POWER | KW | 30 |
| FAD/Discharge Pressure | CFM/BAR | 173.1/7 |
| 162.5/8 | ||
| 141.3/10 | ||
| 127.2/12 | ||
| Cooling Method | Air Cooled | |
| Drive Type | Direct | |
| Dimensions (mm) | Length | 1000 |
| Width | 750 | |
| Height | 1090 | |
| Net Weight | Kg | 395 |
| Noise | dB(A) | 62 2 |
| Outlet Diameter | G11/4″ |
G2DB-40VSD does not include Vessel, Air Dryer or Filters.
Warranty Information
Screw / Rotarty Compressors include a 5 Year Warranty on the air-end and motor, 2 year warranty on pressure and temperature sensors, PLC, fan, after-cooler and VSD drives.
This is subject to an up to Date Factory Manual Service Contract. First Services to be carried out in 3 months thereafter every 6 Months is required, by approved Detroit Service Providers. Please seePower Tool TradersWarranty for full Warranty details.
