Description

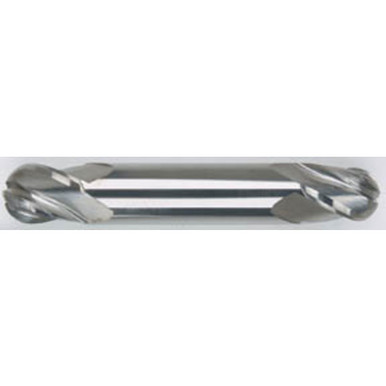

4-Flute Stub Length Ball Nose Double End Mills Ball Noseend mills are designed for milling die cavities, fillets, round bottom holes and radius bottom slots 4-fluteend mills with a greater core thickness offer increast tool strength and reduces tool deflection. 4-Flutes also reduce chip load per tooth for the milling of tougher materials, greater wear resistance and improved surface finish Center Cuttingend allows for pluge cutting like a drill into solid materialsCountry of OriginUSAWarning-Proposition 65- For Californian Users onlyWARNING:This product contains a chemical known to the State of California to cause cancer or Birth defects.For more information go towww.P65Warnings.ca.govCutting Diameter (DC) 5/16″Tool Type Double-EndConnection Diameter Machine Side (DCONMS) 5/16″Length Group StubDepth of Cut Maximum (APMX) 1/2″End Shape BallOverall Length (OAL) u200e2-1/2″Coolant Supply Property (CSP) ExternalCutting Edge Material CarbideStyle FinishingCoating UncoatedDecimal Equivalent 0.3125″Flute Count (NOF) 4Measurement Type InchFlute Helix Angle (FHA) 30 DegreesSeries/List 5949Shank Type PlainCenter Cutting YesUsable Length (LU) 1/2″
