Description

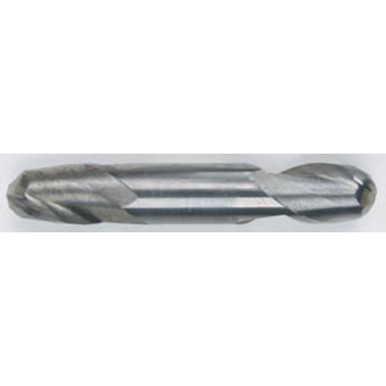

2-Flute Sub Length Ball Nose Double End Mills ó Solid Carbide Ball Noseend mills are designed for milling die cavities, fillets, round bottom holes and radius bottom slots 2-fluteend mills provide increased chip capacity Center Cuttingend allows for pluge cutting like a drill into solid materials Solid Carbideoffers higher cutting speeds, high rigidity, excellent hardness, wear resistance and long tool life TiALN – Titanium Aluminum Nitrideexcellent all around coatings featuring high heat resistance. Recommended for high thermal stress applications including dry machining, abrasive materials and hard-to-machine materials that generate higher cutting temperatures.Country of OriginUSAWarning-Proposition 65- For Californian Users onlyWARNING:This product contains a chemical known to the State of California to cause cancer or Birth defects.For more information go towww.P65Warnings.ca.govCutting Diameter (DC) 5/32″Tool Type Double-EndConnection Diameter Machine Side (DCONMS) 3/16″Length Group StubDepth of Cut Maximum (APMX) 5/16″End Shape BallOverall Length (OAL) 2″Coolant Supply Property (CSP) ExternalCutting Edge Material CarbideStyle FinishingCoating AlTiNDecimal Equivalent 0.15625″Flute Count (NOF) 2Measurement Type InchFlute Helix Angle (FHA) 30 DegreesSeries/List 5948TShank Type PlainCenter Cutting YesApplicable Material Carbide
