Description

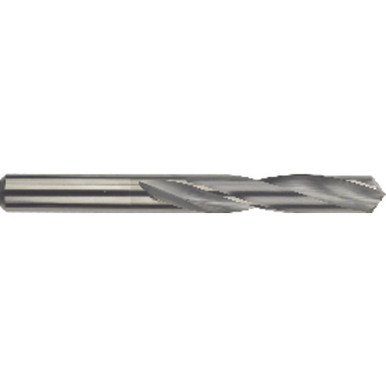

Solid Carbide Standard Length DrillRecommended for drilling cast iron, non-ferrous alloys, plastics, aluminum and other easily machined materials Solid Carbideoffer excellent hardness, wear resistance and heat resistance for higher cutting speeds and longer tool lifeTolerance +0/-.0005Country of OriginUSADrill Bit Size / Cutting Diameter (DC) 69Tool Type DrillDecimal Equivalent 0.0292″Point Shape SplitDrill Bit Size / Cutting Diameter (DC) – Letter /xa0Wire Gauge 69Measurement Type Wire GaugeLength Group StandardSeries/List 5374Coating BrightUsable Length (LU) 5/16″Connection Diameter Machine Side (DCONMS) 0.0292″Length Chip Flute (LCF) 5/16″Coolant Supply Property (CSP) ExternalOverall Length (OAL) u200e1-1/4″Point Angle (SIG) 118 DegreesFlute Count (NOF) 2Flute Helix Angle (FHA) 25 DegreesCutting Direction (HAND) Right HandShank Type RoundBody Material CarbideCutting Edge Material Carbide
