Description

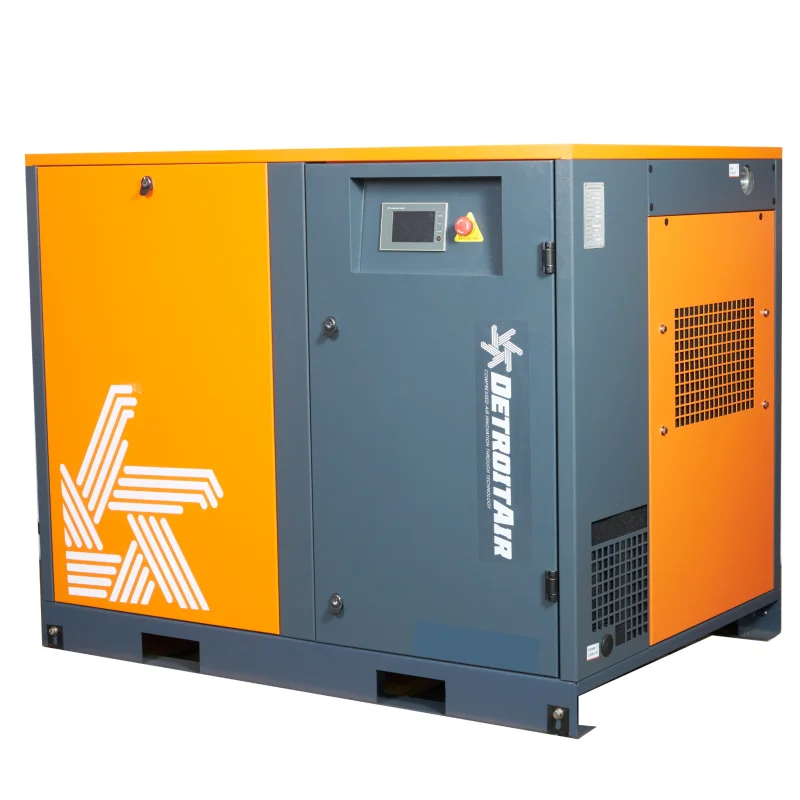

| MODEL | DB-100 | |
| MOTOR POWER | KW | 75 |
| Unit of measure: | Mpa/(m3/min) | Airend air delivery measured according to ISO 1217 suction conditions. Based on 0,8MPa pressure. Applicable pressure 0,8MPa. |
| FAD/Discharge Pressure | 0.7Mpa | 12.5 |
| 0.8Mpa | 12.3 | |
| 1.0Mpa | 12.1 | |
| Unit of measure: | (PSI/CFM) | |
| FAD/Discharge Pressure | 100 | 441 |
| 116 | 434 | |
| 145 | 427 | |
| Drive Type | Direct coupled | |
| Start System | Star-Delta | |
| Oil type | 46 Shell Carona S3 Semi Synthetic | |
| Oil volume in Litres | 38 | |
| Motor energy rating(%) | 92.7 | |
| Motor Service factor | 1.2 | |
| Full load current at 380v | 157 | |
| Full load current at 400v | 150 | |
| Full load current at 415v | 144 | |
| Cooling Method | Air Cooled | |
| Fan motor power (Watt) | 860*2 | |
| Cooler fan displacement (m3/min) per fan | 10800*2 | |
| Required circuit breaker (Amp) | Consult Your Electrician, Take Into Account Cable Losses Through Installation And Length | |
| Minimum cable cross section (mm2) per core | 70 | |
| Dimensions (mm) | L | 1900 |
| D | 1300 | |
| H | 1600 | |
| Net Weight | Kg | 1000 |
| Noise | dB (A) | 752 |
| Outlet Diameter | G2″ |
G2DB-100 does not include the Air Dryer, Pressure Vessel and Filteration.
Warranty Information
Factory defects are covered on the air-end for a period of 5 years. This is calculated on hours used and is based on and 8 hour day, and two years on pressure and temperature sensors, PLC, fan, after-cooler and VSD drives. There is no warranty on the Electric Motor.
We do offer a limited good-will warranty for items that fail just out of warranty, our goal is to ensure a no-fuss support of your Detroit Air compressor.
This is subject to an up to Date Factory Manual Service Contract. First Services to be carried out in 3 months thereafter every 6 Months is required, by approved Detroit Service Providers. Please seePower Tool TradersWarranty for full Warranty details.
