Description

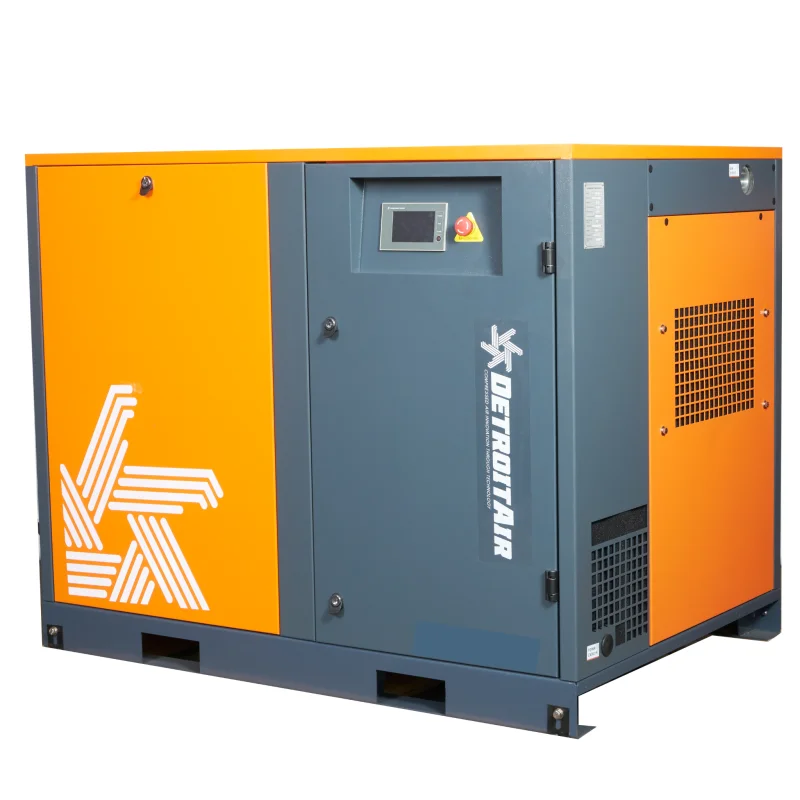

| MODEL | G2DB-125 | |
| MOTOR POWER | KW | 90 |
| FAD/Discharge Pressure | CFM/BAR | 565/7 |
| 536/8 | ||
| 481/10 | ||
| Cooling Method | Air Cooled | |
| Drive Type | Direct | |
| Dimensions (mm) | Length | 2000 |
| Width | 1200 | |
| Height | 1870 | |
| Net Weight | Kg | 2480 |
| Noise | dB(A) | 68 2 |
| Outlet Diameter | DN65 |
G2DB-125 does not include the Air Dryer, Pressure Vessel and Filteration.
Warranty Information
Screw / Rotarty Compressors include a 5 Year Warranty on the air-end, 2 year warranty on pressure and temperature sensors, PLC, fan, after-cooler and VSD drives.
This is subject to an up to Date Factory Manual Service Contract. First Services to be carried out in 3 months thereafter every 6 Months is required, by approved Detroit Service Providers. Please seePower Tool TradersWarranty for full Warranty details.
