Description
This FR8 Series is the most convenient and efficient way to fuel your small equipment.
Specification

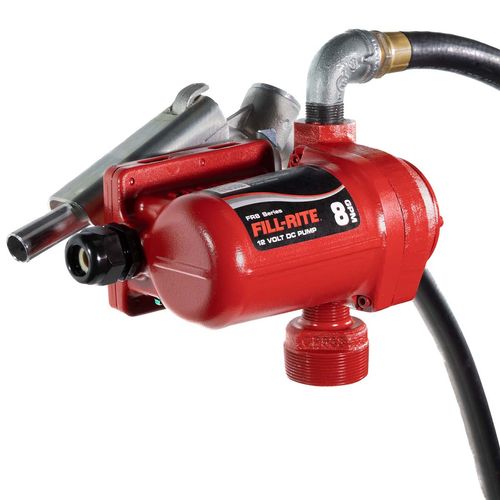

- Fill-Rite® 12V DC 8 GPM Fuel Transfer Pump with Nozzle
- Part Number: FR8
- Max Flowrate: 8 GPM / 30 LPM
- Inlet / Outlet Thread Size (in.) 1 ” / 0.75 “
- Mounting Size / Thread / Type: 2″ / Buttress / Rotary Vane
- Duty Cycle: 15 min on / 15 min off
- Motor Power: 1/12
- Power Type: DC
- Suction Lift (ft.): 6′
- Dry Vacuum (in. Hg): 3.5
- Max Discharge Pressure: 12PSI
- Discharge Head (ft.): 32′
- Strainer Mesh Size (micron): 20 X 20
