Description
Premium Detroit G2DB Series Expert Info Video Below
| MODEL | G2DB-20FF | |
| MOTOR POWER | KW | 15 |
| FAD/Discharge Pressure | CFM/BAR | 74/7 |
| 71/8 | ||
| 65/10 | ||
| 58/12 | ||
| Cooling Method | Air Cooled | |
| Drive Type | Direct | |
| Dimensions (mm) | Length | 1800 |
| Width | 700 | |
| Height | 1750 | |
| Net Weight | Kg | 610 |
| Noise | dB(A) | 60 2 |
| Outlet Diameter | G3/4″ |

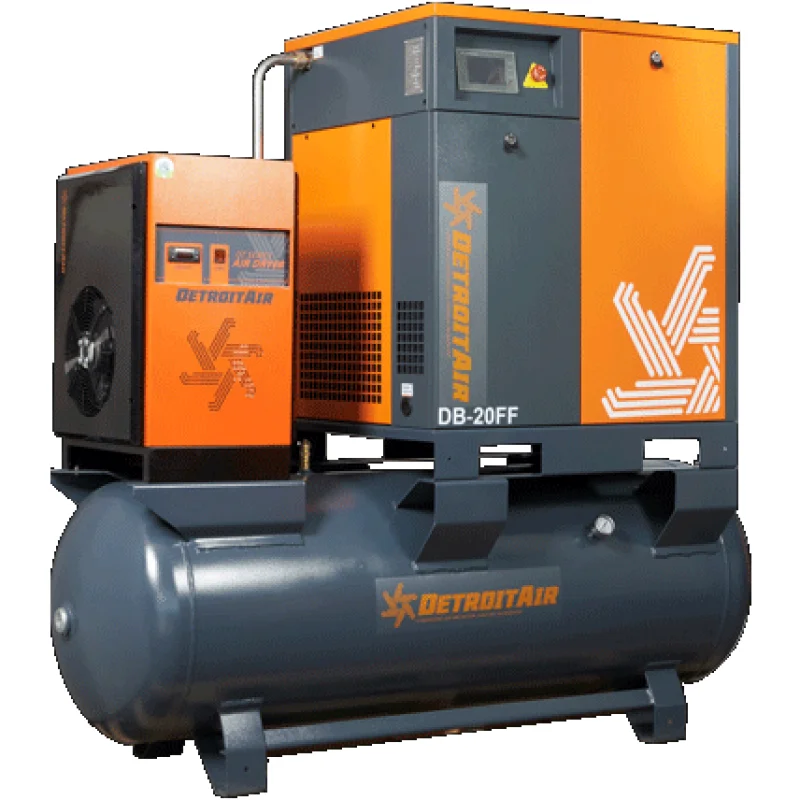

G2DB-20FF includes Dryer, Pressure Vessel and Filters.
All Pressure Vessels must be Pre-Commissioned when they are installed.Installation and Pre-Commissioningis not included in the price.
Warranty Information
Factory defects are covered on the air-end for a period of 5 years. This is calculated on hours used and is based on and 8 hour day, and two years on pressure and temperature sensors, PLC, fan, after-cooler and VSD drives. There is no warranty on the Electric Motor.
We do offer a limited good-will warranty for items that fail just out of warranty, our goal is to ensure a no-fuss support of your Detroit Air compressor.
This is subject to an up to Date Factory Manual Service Contract. First Services to be carried out in 3 months thereafter every 6 Months is required, by approved Detroit Service Providers. Please seePower Tool TradersWarranty for full Warranty details.
