- Grizzly®

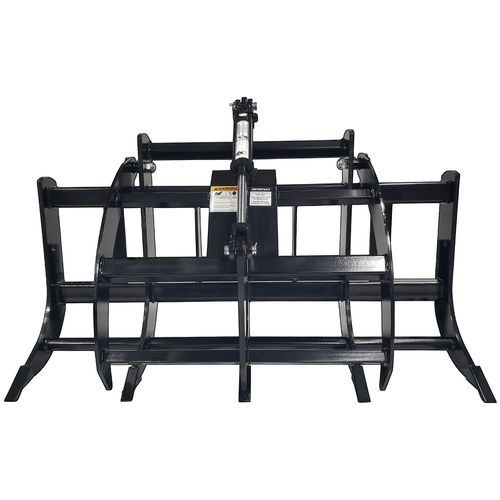

- Compact Grapple Hook
- Product Number: 811460
- Overall Width: 60″
- Overall Depth: 23″
- Overall Height: 38.77″
- Grapple Opening: 27″
- Upper Grapple Widths: 34″
- Tine Spacing: 15″
- Number of Lower Tines: 5
- Reinforced Tubes Between Lower Tines: Yes
- Number of Hydraulic Cylinders: 1
- Cylinder Bore: 2″
- Cylinder Stroke: 8″
- Cylinder Pressure Rating: 3000 PSI
- Weight: 359 lbs.
- Unique upper grapple design of 3/8″ steel provides clamping force to hold material securely
- Design allows brush and other materials to be picked up while leaving the dirt
- Size compatible with the lift capacity of most small loader tractors
- Lower tines of 5/8″ steel feature weld-on tine points, for easy, clean debris pickup
- Pivot points have lubrication capabilities
- Tractor remote hydraulic ports are required to operate the grapple
- Tractor front loader model allows the use of standard pin-on brackets or select interfacing quick attach brackets for John Deere, AGCO, CNH, Kubota and other brands
- Model 4062S is designed for tractor front loaders with “universal” skid steer style quick attach
