Description

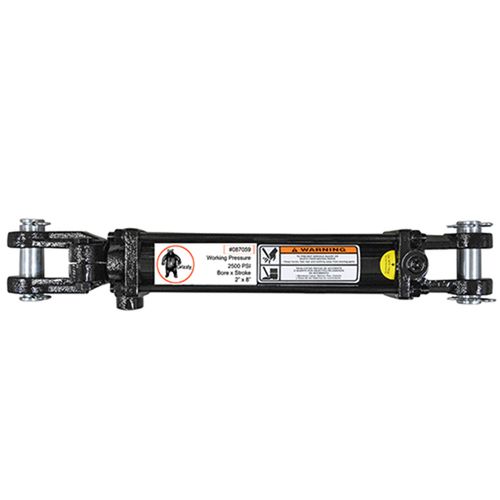

This Grizzly® hydraulic cylinder has a 2″ inch bore and a 8″ stroke with a retraced length of 18-1/4 inches and an extended length of 26-1/4 inches. Grizzly cylinders are contructed from high strength steel and zinc plated for the tough conditions on the job or farm.
Specifications
- Grizzly® Brand
- Bore: 2″
- Stroke: 8″
- Hydraulic Cylinder
- Rod Diameter: 1-1/8″
- Retracted Length: 18-1/4″
- Extended Length: 26-1/4″
- Pin Diameter: 1″
- Port Size: 3/8″ NPTF
- PSI: 2500
- Push lbs.: 7,584
- Pull lbs.: 5,369
- Recommended operating temperature range: -30 to 105°C (-22 to 221°F)
- For the seal kit use ASC 117380
We carry plenty of hydraulic cylinders and other repair kits, clevis rods, hydraulic parts and pieces.
