Description

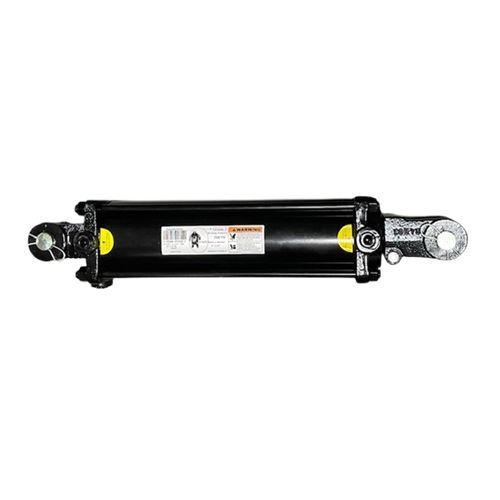

This Grizzly® hydraulic cylinder has a 4-inch bore and a 12 stroke with a retraced length of 22-1/4 inches and an extended length of 34-1/4 inches. Grizzly cylinders are constructed from high-strength steel and zinc plated for tough conditions on the job or farm.
Specifications
- Grizzly® Brand
- Model number: T25401212
- Bore: 4″
- Stroke: 12″
- Rod Diameter: 1-1/2″
- Retracted Length: 22-1/4″
- Extended Length: 34-1/4″
- Pin Diameter: 1″
- Port Size: 1/2″ NPTF
- PSI: 2500
- Push lbs.: 31,416
- Pull lbs.: 26,998
- Recommended operating temperature range: -30 to 105°C (-22 to 221°F)
- For the seal kit use ASC 117385
