Description

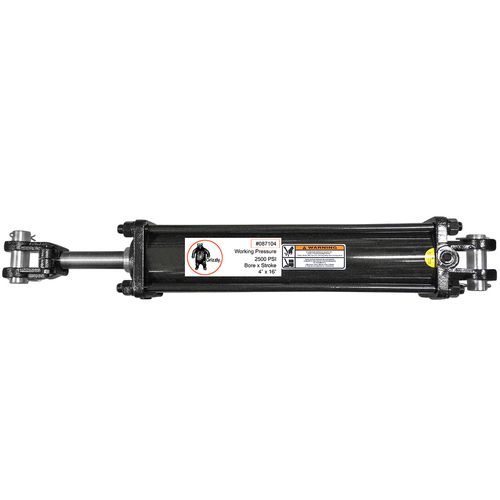

Replace hydraulic cylinders to keep your equipment running. This 4″ x 16″ cylinder has a rod diameter of 1-3/4″ and is constructed of high-strength steel and includes tie rods to prevent high-pressure failure.
Specifications:
- Hydraulic Cylinder
- Model number: 87104A
- Bore: 4″
- Stroke: 16″
- Rod Diameter: 1-3/4″
- UNF Thread: 1 1/4-12″
- Retracted Length: 31-1/2″
- Extended Length: 47-1/2″
- Pin Diameter: 1″
- Port Size: 1/2″ NPTF
- PSI: 2500
- Push lbs.: 31,416
- Pull lbs.: 25,403
- C95-4016
- Recommended operating temperature range: -30 to 105°C (-22 to 221°F)
We carry plenty of hydraulic cylinders and other repair kits, clevis rods, hydraulic parts and pieces.
