Description

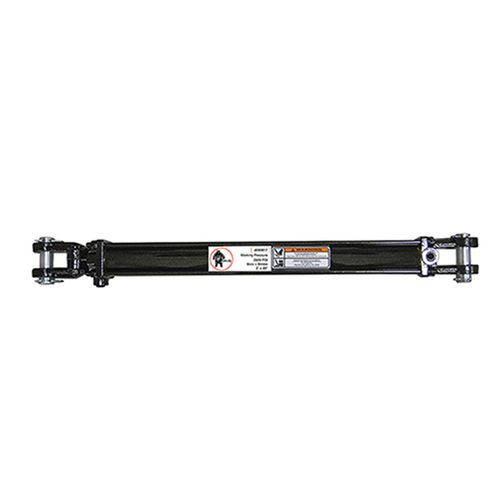

Hydraulic cylinders are constructed of high-strength steel and include tie rods to prevent high-pressure failure. This cylinder features a 4-inch bore with a 24-inch stroke and has a 1-inch pin.
Specifications
- Hydraulic Cylinder
- Model number: 87109A
- Bore: 4″
- Stroke: 48″
- Rod Diameter: 2″
- Retracted Length: 58-1/4″
- Extended Length: 106-1/4″
- Pin Diameter: 1″
- Port Size: 1/2″ NPTF
- PSI: 2500
- Push lbs.: 31,416
- Pull lbs.: 23,562
- Recommended operating temperature range: -30 to 105°C (-22 to 221°F)
We carry plenty of hydraulic cylinders and other repair kits, clevis rods, hydraulic parts and pieces.
